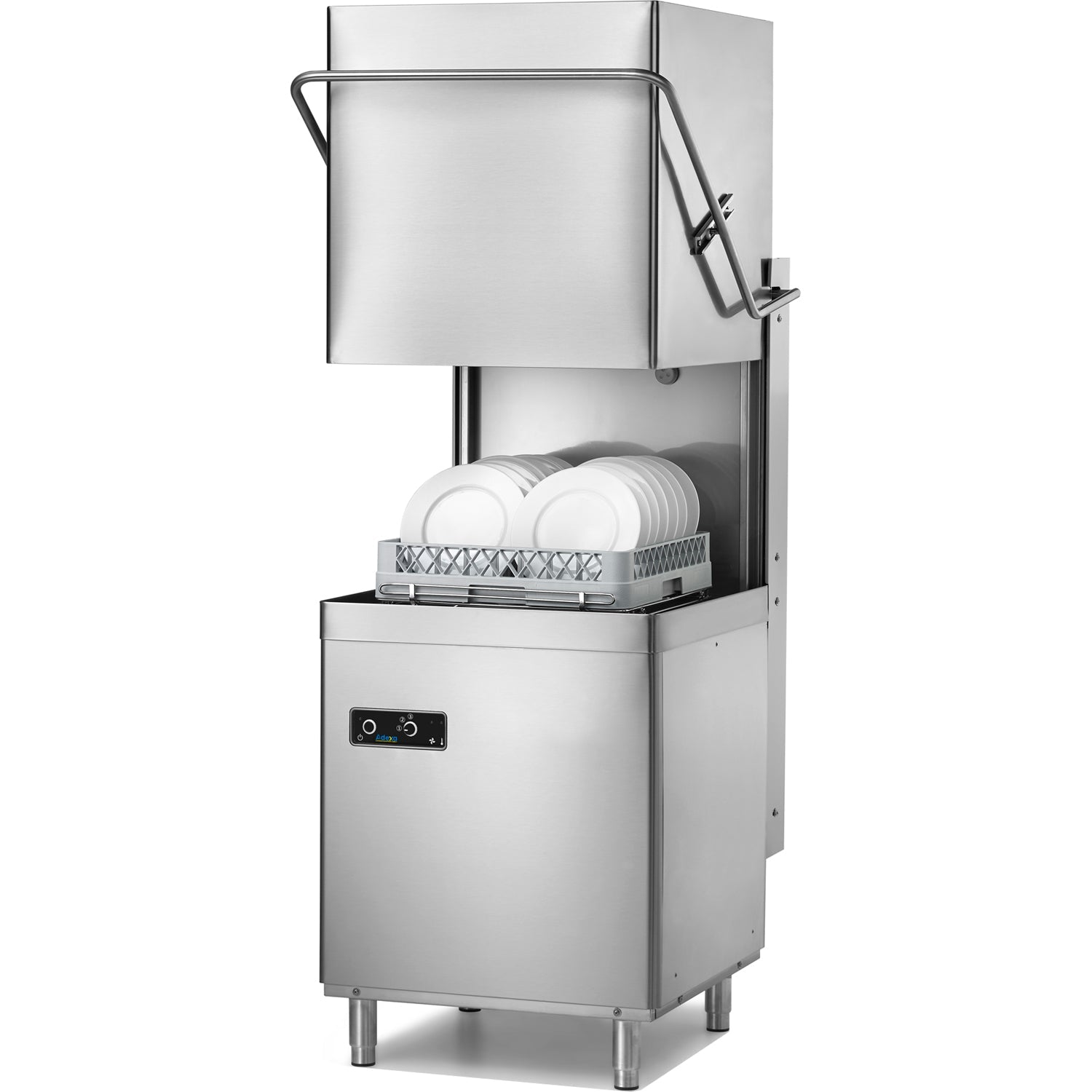

Passthrough Dishwasher Premium 500mm Basket 48 Baskets/Hour Built In Water Softener Break Tank Drain Pump Detergent Dosing Pump 230 V | Adx10 Mbws

Description

This premium hood-type dishwasher offers outstanding professional performance and exceptional economical operation for restaurants, hotels, and other catering businesses. It includes a break tank as standard. The break tank is a separate reservoir with an air overflow that prevents any contaminated water, food debris, or bacteria from entering your freshwater supply — ensuring maximum hygiene for clean glassware and crockery.

A break tank is mandatory for all high-risk businesses under UK Water Board regulations, including nurseries, schools, hospitals, and care homes.

  • Single-skinned body and double skin doors
  • Made in Italy
  • Power supply: 230V / 1N / 50Hz
  • Built-in water softener
  • Includes break tank

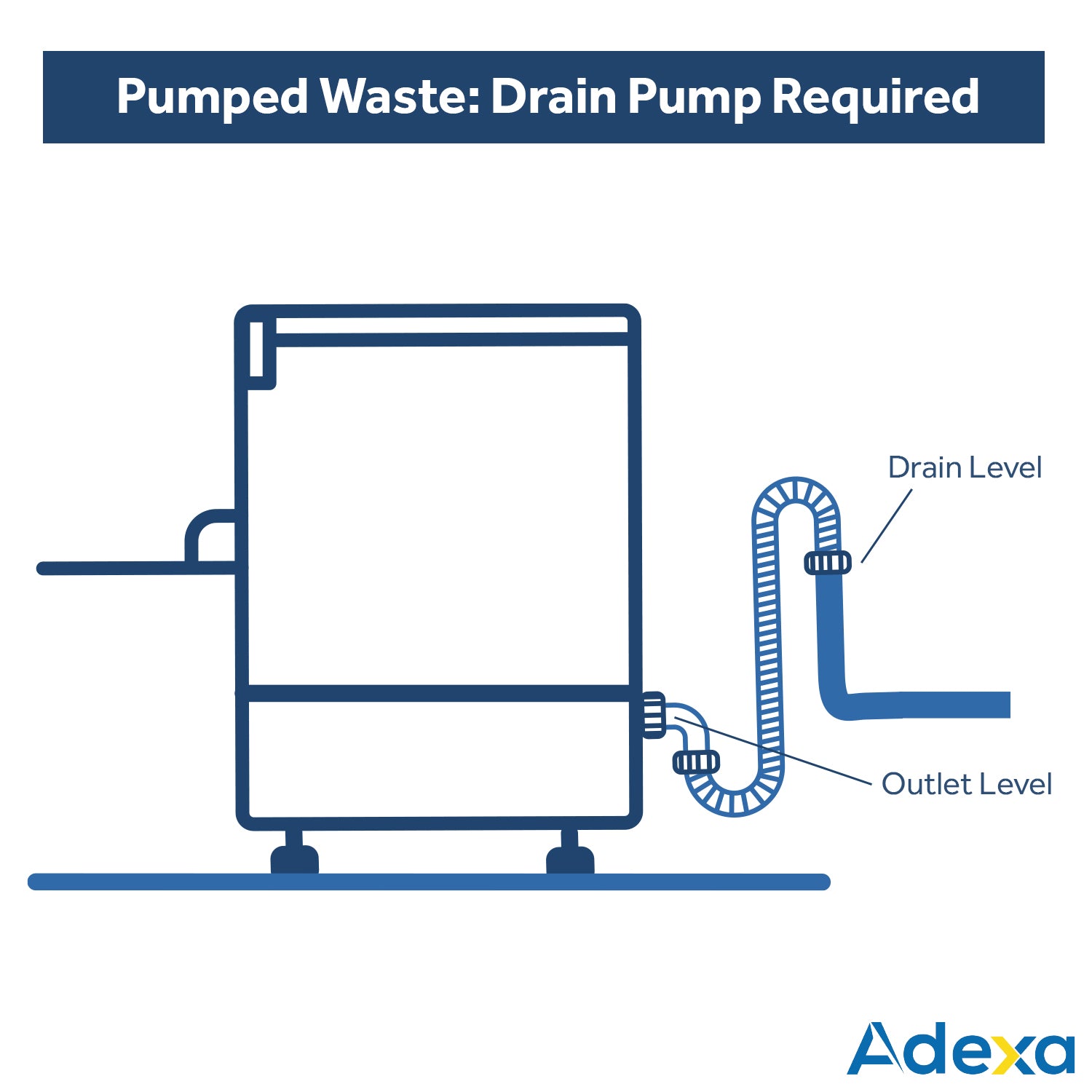

  • Drain pump included
  • Detergent dosing pump included
  • Easy-clean filter system
  • Two stainless steel wash arms and two composite rinse arms, independently rotating and tool-free removable
  • Inclined wash tank for better drainage
  • Self-draining inclined wash pump
  • Tank and hood made of AISI 304 stainless steel
  • Adjustable rinse aid dosing unit
  • Auto-start hood
  • Electromechanical control panel

Washing Cycles

  • Cycle 1: 75 sec (48 baskets/h)
  • Cycle 2: 120 sec (30 baskets/h)
  • Cycle 3: 180 sec (20 baskets/h)

Specifications

  • Basket size: 500 x 500 mm
  • Wash pump power: 1.1 kW
  • Wash pump capacity: 503 litres/min
  • Tank heating element: 3 kW
  • Boiler heating element: 6 kW
  • Total power: 7.1 kW
  • Water supply temperature: +55°C
  • Water supply pressure: 200–400 kPa
  • Water hardness: min. 7°f / max. 12°f
  • Washing temperature: +55°C
  • Rinsing temperature: +85°C
  • Tank capacity: 30 litres
  • Boiler capacity: 7 litres
  • Water consumption per cycle: 2.8 litres
  • Sound emission: 69 dB(A)

Included Accessories

  • 1 x 18-plate rack
  • 1 x universal basket
  • 1 x cutlery rack
  • Hoses for water connection, drain, and rinse product

Click here to download User Manual

Click here to download Instructions for Adjusting Rinse Aid and Detergent Dispensers

Click here to download Declaration of Conformity

Passthrough Dishwasher Premium 500mm Basket 48 Baskets/Hour Built In Water Softener Break Tank Drain Pump Detergent Dosing Pump 230 V | Adx10 Mbws

Product form

£4,156.00 £3,053.95 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    Description

    This premium hood-type dishwasher offers outstanding professional performance and exceptional economical operation for restaurants, hotels, and other catering businesses. It includes a break tank as standard. The break tank is a separate reservoir with an air overflow that prevents any contaminated water, food debris, or bacteria from entering your freshwater supply — ensuring maximum hygiene for clean glassware and crockery.

    A break tank is mandatory for all high-risk businesses under UK Water Board regulations, including nurseries, schools, hospitals, and care homes.

    • Single-skinned body and double skin doors
    • Made in Italy
    • Power supply: 230V / 1N / 50Hz
    • Built-in water softener
    • Includes break tank
    • Drain pump included
    • Detergent dosing pump included
    • Easy-clean filter system
    • Two stainless steel wash arms and two composite rinse arms, independently rotating and tool-free removable
    • Inclined wash tank for better drainage
    • Self-draining inclined wash pump
    • Tank and hood made of AISI 304 stainless steel
    • Adjustable rinse aid dosing unit
    • Auto-start hood
    • Electromechanical control panel

    Washing Cycles

    • Cycle 1: 75 sec (48 baskets/h)
    • Cycle 2: 120 sec (30 baskets/h)
    • Cycle 3: 180 sec (20 baskets/h)

    Specifications

    • Basket size: 500 x 500 mm
    • Wash pump power: 1.1 kW
    • Wash pump capacity: 503 litres/min
    • Tank heating element: 3 kW
    • Boiler heating element: 6 kW
    • Total power: 7.1 kW
    • Water supply temperature: +55°C
    • Water supply pressure: 200–400 kPa
    • Water hardness: min. 7°f / max. 12°f
    • Washing temperature: +55°C
    • Rinsing temperature: +85°C
    • Tank capacity: 30 litres
    • Boiler capacity: 7 litres
    • Water consumption per cycle: 2.8 litres
    • Sound emission: 69 dB(A)

    Included Accessories

    • 1 x 18-plate rack
    • 1 x universal basket
    • 1 x cutlery rack
    • Hoses for water connection, drain, and rinse product

    Click here to download User Manual

    Click here to download Instructions for Adjusting Rinse Aid and Detergent Dispensers

    Click here to download Declaration of Conformity
