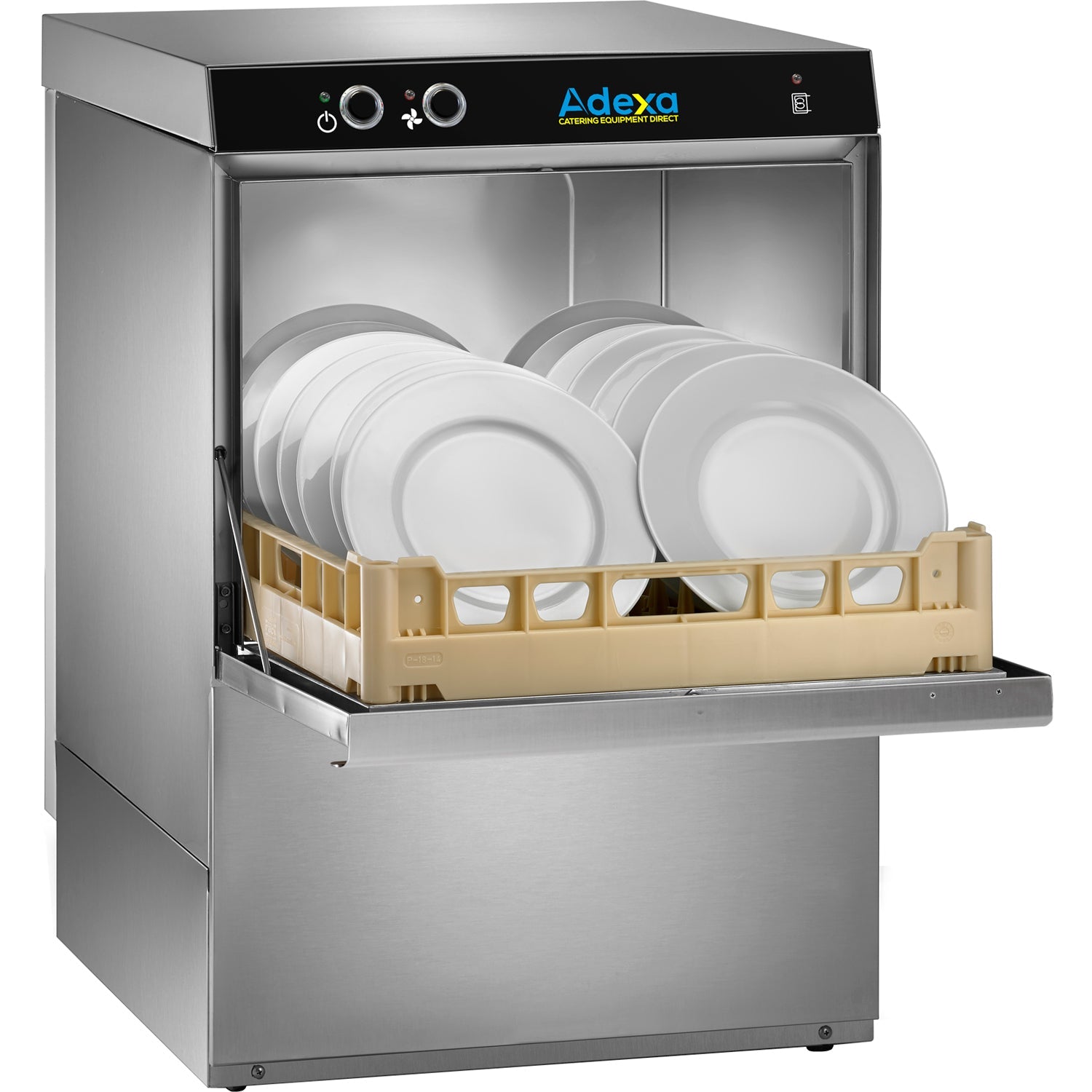

Commercial Dishwasher Premium 500mm Basket 20 Baskets/Hour Built In Water Softener Break Tank Drain Pump Detergent Dosing Pump | Adx50 Bws

Description

    High quality, premium and fully equipped professional undercounter dishwasher for hotels, bakeries, pubs, shops, restuarants and other commercial catering establishments. This item includes a
    break tank as standard. The break tank is a separate reservoir with an air
    overflow that acts as a barrier between any contaminated water and your fresh
    water supply. The break tank means that no contaminated water, food debris or
    bacteria can ever enter your freshwater supply, ensuring maximum hygiene for
    clean glassware and crockery. A break tank is a
    requirement for all high-risk businesses under the UK Water Board regulations.
    That typically includes Nurseries, all Schools, Hospitals, and Care Homes. This item is also fitted with a

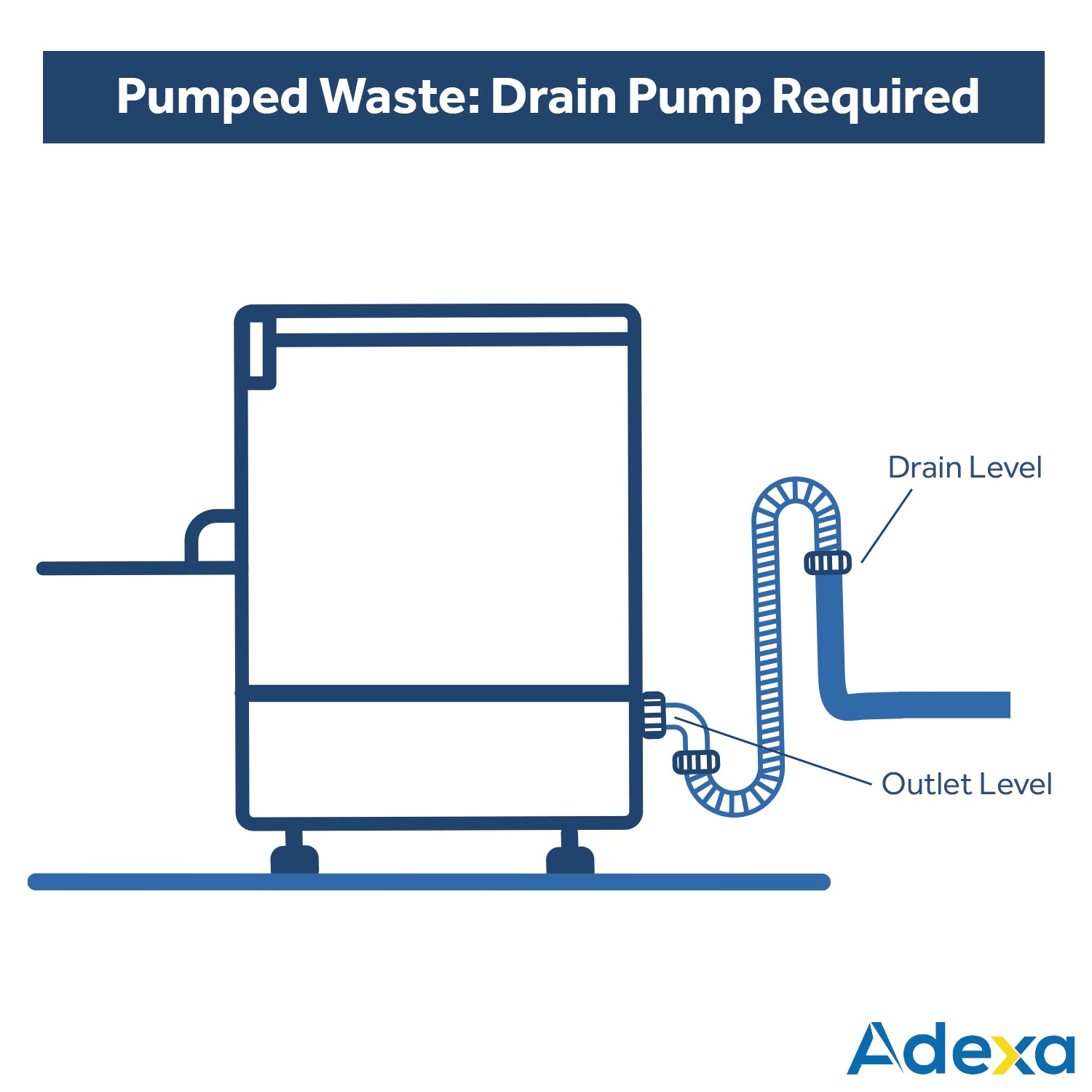

    drain pump for waste disposal. The pump is activated at the end of the washing
    cycle to release dirty water from the machine. A drain pump is essential if the
    drain is level or higher than the water outlet of the machine.




    • Single-skinned cabinet with double-skinned door.
    • Made in Italy
    • With break tank
    • With built-in water softener
    • With drain pump
    • With detergent dosing pump
    • Low noise
    • Easy-clean-filter system.
    • Two stainless-steel wash arms and two rinse arms made of composite material, independent and rotary.
    • Tank and door made of stainless steel AISI 304.
    • Removable cylindrical stainless-steel tank filter for waste collection
    • Adjustable rinse aid dosing unit.
    • Micro security door.
    • Electromechanical control panel
    • Cycle: 180 sec (20 baskets/h)
    • Basket size: 500 x 500 mm
    • Wash pump power: 0.4 kW
    • Wash pump capacity: 261 litres/min
    • Element power (tank): 2.5 kW
    • Element power (boiler): 3.5 kW
    • Water supply temperature: +55°C
    • Water supply pressure: 200 - 400 kPa
    • Water supply hardness max: min. 7 max. 12°f
    • Washing temperature: +55°C
    • Rinsing temperature: +82°C
    • Capacity tank: 25 litres
    • Capacity boiler: 5.5 litres
    • Water consumption per cycle: 2.5 litres
    • Sound emission: 62 dB(A)
    • Total power: 3.9 kW
    • Power supply: 230V / 1N / 50Hz
    Included accessories
    • Baskets; 1x18 plates rack, 1 universal basket, 1 cutlery rack
    • Hoses (1 for each); Water connection, Drain, Transparent rinsing product

    Documents

    Please see under 'Specification' for detailed
    information.

    Commercial Dishwasher Premium 500mm Basket 20 Baskets/Hour Built In Water Softener Break Tank Drain Pump Detergent Dosing Pump | Adx50 Bws

    Product form

    £3,156.00 £1,922.95 Incl. VAT

      • Guaranteed secure & safe checkout.

        shop pay

      Description

        High quality, premium and fully equipped professional undercounter dishwasher for hotels, bakeries, pubs, shops, restuarants and other commercial catering establishments. This item includes a
        break tank as standard. The break tank is a separate reservoir with an air
        overflow that acts as a barrier between any contaminated water and your fresh
        water supply. The break tank means that no contaminated water, food debris or
        bacteria can ever enter your freshwater supply, ensuring maximum hygiene for
        clean glassware and crockery. A break tank is a
        requirement for all high-risk businesses under the UK Water Board regulations.
        That typically includes Nurseries, all Schools, Hospitals, and Care Homes. This item is also fitted with a
        drain pump for waste disposal. The pump is activated at the end of the washing
        cycle to release dirty water from the machine. A drain pump is essential if the
        drain is level or higher than the water outlet of the machine.




        • Single-skinned cabinet with double-skinned door.
        • Made in Italy
        • With break tank
        • With built-in water softener
        • With drain pump
        • With detergent dosing pump
        • Low noise
        • Easy-clean-filter system.
        • Two stainless-steel wash arms and two rinse arms made of composite material, independent and rotary.
        • Tank and door made of stainless steel AISI 304.
        • Removable cylindrical stainless-steel tank filter for waste collection
        • Adjustable rinse aid dosing unit.
        • Micro security door.
        • Electromechanical control panel
        • Cycle: 180 sec (20 baskets/h)
        • Basket size: 500 x 500 mm
        • Wash pump power: 0.4 kW
        • Wash pump capacity: 261 litres/min
        • Element power (tank): 2.5 kW
        • Element power (boiler): 3.5 kW
        • Water supply temperature: +55°C
        • Water supply pressure: 200 - 400 kPa
        • Water supply hardness max: min. 7 max. 12°f
        • Washing temperature: +55°C
        • Rinsing temperature: +82°C
        • Capacity tank: 25 litres
        • Capacity boiler: 5.5 litres
        • Water consumption per cycle: 2.5 litres
        • Sound emission: 62 dB(A)
        • Total power: 3.9 kW
        • Power supply: 230V / 1N / 50Hz
        Included accessories
        • Baskets; 1x18 plates rack, 1 universal basket, 1 cutlery rack
        • Hoses (1 for each); Water connection, Drain, Transparent rinsing product

        Documents

        Please see under 'Specification' for detailed
        information.
